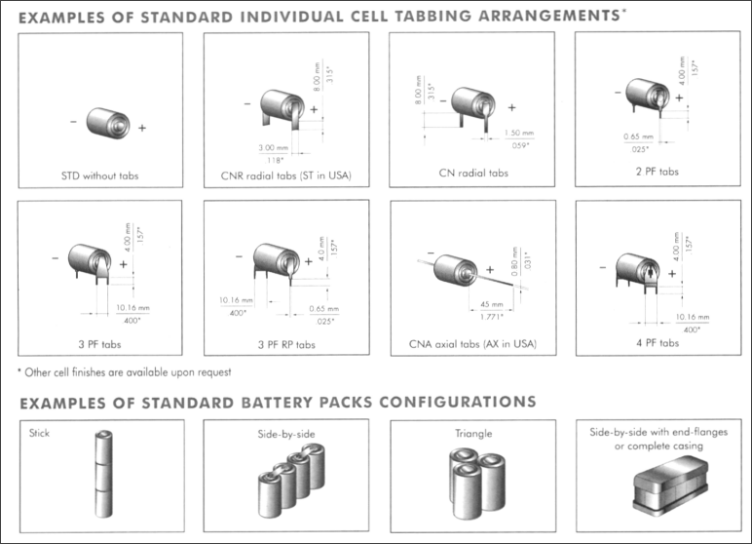

Lithium-thionyl chloride (Li-SOCl2) Lithium-thionyl chloride cells have an anode in metallic lithium (the lightest of the metals) and a liquid cathode comprising a porous carbon current collector filled with thionyl chloride (SOCl2). They deliver a voltage of 3.6 V and are cylindrical in shape, in 1/2AA to D format, with spiral electrodes for power applications and bobbin construction for prolonged discharge. Lithium-thionyl chloride cells have a high energy density, partly because of their high nominal voltage of 3.6 V. Bobbin versions can reach 1220 Wh/L and 760 Wh/kg, for a capacity of 18.5 Ah at 3.6 V in D format. Because self-discharge is extremely low (less than 1% per year), this kind of cell can support long storage periods and achieve a service life of 10 to 20 years. For different applications, the cells can be fitted with various types of connectors and assembled in various battery arrays, including a number of standardized versions. Saft products address a broad spectrum of fixed and mobile civil and defence applications.



LSH cell range

Non rechargeable battery



  • Main applications
  • utility metering
  • automated meter reading
  • alarms and security wireless devices
  • mobile asset tracking
  • GPS
  • emergency location beacon transmitters (ELTs, EPIRBs)
  • professional electronics
  • military radiocommunication
  • sonobuoys
  • oil exploration
  • automotive telematics
  • telemetry

Non rechargeable battery



  • Main applications
  • utility metering with shutting down valve activation
  • automated meter reading
  • electronic toll collection
  • tracking systems
  • professional and military electronics

Non rechargeable battery



  • Main applications
  • electronic toll collection
  • identification and tracking systems
  • professional electronics

Non rechargeable battery



  • Main applications
  • Memory back-up
  • Wireless alarm and security devices
  • Utility metering
  • Automated Meter Reading
  • GPS/GSM tracking
  • Oil exploration
  • Professional electronics

Non rechargeable battery



  • Main applications
  • Memory back-up
  • Real-time clocks
  • Utility metering
  • Automated Meter Reading
  • Wireless alarms and Security devices
  • Emergency location transmitters beacon
  • Electronic toll collection
  • Professional electronics


  PRODU CTION SITE SIZE OPEN CIRCUIT VOLTAGE NOMINAL VOLTAGE DOMINAL CAPACITY (DRAIN) MAXIMUM RACCOMANDED CONTINUOS CURRENT OPERATING TEMPERATURE RANGE OUTSIDE DIAMETER MAX. HEIGHT MAX. WEIGHT UL RECO GNICTION TRANSPORT
LS 14250 F 1/2 AA 3.67V 3.6V 1.0 Ah (1.5mA) 40mA -60/ +85°C 14.5mm 24.8mm

8.5g

 yes non restricted
T 04 UK 1/2 AA 3.67V 3.6V 1.0 Ah (1.5mA) 40mA -60/ +85°C 14.4mm 25.2mm 10.0g yes non restricted
LS 14250 C F 1/2 AA 3.67V 3.6V 1.2 Ah (0.5mA) 12mA -60/ +85°C 14.5mm 28.8mm 8.5g yes non restricted
LS 14500 F AA 3.67V 3.6V 2.25 Ah (3mA) 120mA -60/ +85°C 14.5mm 50.3mm 16.0g yes non restricted
T 06 UK AA 3.67V 3.6V 2.20 Ah (3mA) 120mA -60/ +85°C 14.4mm 49.9mm 18.0g yes non restricted
LS 14500 C F AA 3.67V 3.6V 2.75 Ah (1mA) 25mA -60/ +85°C 14.5mm 50.3mm 6.0g yes non restricted
T 32 UK 2/3 A 3.67V 3.6V 1.70 Ah (3mA) 80mA -60/ +85°C 16.6mm 34.1mm 14.0g yes non restricted
LS 17500 F A 3.67V 3.6V 3.3 Ah (4mA) 130mA -60/ +85°C 17.0mm 50.5mm 23.5g yes non restricted
LS 26500 F C 3.67V 3.6V 7.3 Ah (5mA) 170mA -60/ +85°C 26.0mm 50.4mm 48g yes non restricted
LS 33600 F D 3.67V 3.6V 16.5 Ah (5mA) 250mA -60/ +85°C 33.3mm 61.6mm 90g yes non restricted
LS 33600 C F D 3.67V 3.6V 18.5 Ah (1mA) 80mA -60/ +85°C 33.3mm 61.6mm 90g yes non restricted
LSH 26180 F 1/3 C 3.67V 3.6V 1.15 Ah (10mA) 400mA -60/ +85°C 26.2mm 18.9mm 24g ---- non restricted
LSH 14 F C 3.67V 3.6V 5.5 Ah (10mA) 800mA -60/ +85°C 26.0mm 50.4mm 51g yes Class 9
LSH 20 F D 3.67V 3.6V 13.0 Ah (15mA) 1800mA -60/ +85°C 33.3mm 6.6mm 100g yes Class 9
